Control4® 120V/277V Ivory Configurable Keypad
$169.95
At a Glance
An elegant and customizable user interface that unlocks the power of one-touch automation, enabling control of lighting, audio, video, security, climate and more.
Proposition 65 Warning for California Residents
Available Colors
| C4-KC120277-xx | WH, LA, IV, BR, BL, SW, MB, BI, AU |
|---|
Power
| Power Requirements | 110-277VAC +/-10%, 50/60Hz or 36VDC This device requires a neutral AC connection. |
|---|---|
| Power Consumption | 120V: 350mW and 277V: 540mW |
General Specs
| Color | Beige |
|---|---|
| Color Finish Name | Ivory |
| Product Weight (lbs.) | 0.12 |
Environmental
| Operational Temperature | 32° F - 104° F (0° C - 40° C) |
|---|---|
| Humidity | 5% to 95% non-condensing |
| Storage | -4° F – 158° F (-20° C – 70° C) |
Miscellaneous
| Control Communications | ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio |
|---|---|
| Wallbox Volume | 4.75 cubic inches (77.8 cubic centimeters) |
| Shipping Weight | 0.18 lb. (0.08 kg) |
Available Accessories
| Faceplate, 1 Gang (C4-FP1-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
|---|---|
| Faceplate, 2 Gang (C4-FP2-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Faceplate, 3 Gang (C4-FP3-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Faceplate, 4 Gang (C4-FP4-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB |
| Color Kit (C4-CKKC-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |
| Engraved Button, Single High (C4-EBD1H-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |
| Engraved Button, Double High (C4-EBD2H-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |
| Engraved Button, Triple High (C4-EBD3H-xx) | WH, LA, IV, BR, BL, SW, MB, BI, AU |
CLEARANCE

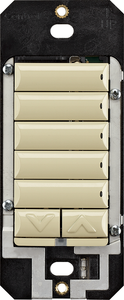

Control4® 120V/277V Ivory Configurable Keypad
Model #: C4-KC120277-IV
See Price in Cart
$169.95
At a Glance
Get to know this product.
The Control4® Wireless Configurable Keypad is an elegant and customizable user interface that unlocks the power of one-touch automation. The keypad can be configured to control almost anything from your music, garage doors, security systems, lights and more. The keypad can be configured with two to seven buttons using four different button sizes for a total of 37 possible configurations. Personalize the keypads based on how your system is set up using custom backlit engraving on each button. Available in 9 fashionable colors and finishes.
Includes a button kit with every button necessary to make any of the 37 possible button configurations
Elegant, sophisticated design makes a beautiful addition to any home or business
Custom engraving available to clearly identify each button
Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
Programmable RGB LEDs provide status feedback for lighting and other devices in the system
Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
Available in a wide array of gloss and satin colors (See Available Colors)
Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
Power via line (mains) voltage or via the Control4 36VDC Keypad Power Supply
*Faceplates are not included. Don’t forget to order faceplates separately.
