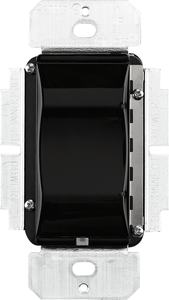

Control4® 120V Black Adaptive Phase Dimmer

Model #: C4-APD120-BL
217665
Control4
At a Glance
Control4 Dimmers allow you to replace any "dumb" dimmers with sleek, sophisticated dimmers that will not only provide elegant control of the lighting inside or outside of your home, but can also be programmed to respond automatically to desired light levels.
Color Finish Name

Aluminum

Aluminum

---


Black

Black

---


Ivory

Ivory

---


White

White

---



Get to know this product.

The Control4® Wireless Adaptive Phase Dimmer is the dimmer of choice for virtually any load type. This dimmer eliminates much of the guess-work associated with choosing the right dimmer for the job and prevents the need to replace the dimmer if the load type changes in the future. Available in 9 stylish colors and finishes. 120V, 240V, or 277V.

  • Compatible with a variety of load types including LEDs, Incandescent, Halogen, Electronic Low Voltage (solid state) Transformers, Magnetic (iron core) Low Voltage Transformers, Fluorescents, and Compact Fluorescents
  • Supports both forward phase (leading edge) and reverse phase (trailing edge) dimming
  • Automatically detects load type and determines the appropriate dimming type
  • Protection circuitry prevents device damage in case of short circuit or excessive load
  • Continuously measures energy being used by the attached load
  • Elegant, sophisticated design makes a beautiful addition to any home or business
  • Custom engraving available to clearly identify which light each dimmer control
  • Backlit button engraving with programmable color control for easy readability regardless of time of day or light level
  • Programmable RGB LEDs provide status feedback for lighting and other devices in the system
  • Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
  • Available in a wide array of gloss and satin colors (See Available Colors)
  • Control4® screw-less faceplates, sold separately
  • California Title 20 compliant

*Faceplates are not included. Don’t forget to order faceplates separately.

Specifications

Available Accessories

Faceplate, 1 Gang (C4-FP1-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 2 Gang (C4-FP2-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 3 Gang (C4-FP3-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 4 Gang (C4-FP4-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Color Kit (C4-CKFPDAPD-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Rocker (C4-EBDR-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU

Available Colors

C4-APD120-xxWH, LA, IV, BR, BL, SW, MB, BI, AU

Environmental

Operational Temperature32°F ~ 104°F (0°C ~ 40°C) All load ratings are based on an ambient temperature of 77°F (25°C).
Humidity5% to 95% non-condensing
Storage-4°F ~ 158°F (-20°C ~ 70°C)

Load Types and Rating

Supported Load TypesIncandescent, halogen; electronic (solid state) low-voltage (ELV) transformers, magnetic (iron core, inductive) low-voltage (MLV) transformers, phase-dimmable fluorescents, compact fluorescents, and LEDs

Miscellaneous

Control CommunicationsZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel, spread-spectrum radio
Wallbox Volume5.75 cubic inches
Shipping Weight0.18 lb. (0.08 kg)

Power

Power Requirements120VAC +/-10%, 50/60 Hz This device can function with or without a neutral AC connection depending on load type.
Power Consumption714mW

Misc. Specs

ColorBlack
Manufacturer WarrantyLimited Warranty. See store for full details.
Product Weight (lbs.)0.12
WarningProposition 65 Warning for California Residents
