Name: Control4® DIN-Rail 8-Channel Adaptive Phase Dimmer V2
Brand: Control4
SKU: 215549
Availability: OutOfStock

TV & Projectors

Integrated Amplifiers

Audio Receivers

Speakers

Soundbars & Subwoofers

Networks

Automation & Control

Security & Surveillance

Power Management

Furniture & Racks

Products

Default Dev Script Validation

<avb-promotions data-type="custom" data-banner-id="768345"></avb-promotions>

<avb-header-before>  <avb-designer-block data-id="28" class="avb-typography dsg-block-28-header-before"> <div class="avb-grid"> <div class="avb-grid__column avb-grid__column--small-12 dsg-block-28-header-before__no-padding"> <div class="avb-wrapper dsg-block-28-header-before__content">  <avb-link class="dsg-block-28-header-before__link" data-href="tel:512-476-3551"> <span class="fas fa-phone dsg-block-28-header-before__icon"></span> CALL US! 512&#8209;476&#8209;3551 </avb-link> </div> </div> </div> </avb-designer-block> </avb-header-before> <style> /* ==================== Header-before (block-28-header-before) ==================== */ .dsg-block-28-header-before__no-padding { padding: 0; } .dsg-block-28-header-before__content { text-align: center; padding: 0.55rem; background-color: #165A2E; font-family: 'Rajdhani', sans-serif; } .dsg-block-28-header-before__icon { padding: 0 0.5rem; } .dsg-block-28-header-before__link, .dsg-block-28-header-before__link:focus, .dsg-block-28-header-before__link:active, .dsg-block-28-header-before__link:visited { color: #fff; font-weight: 500; font-size: clamp(1rem, 2vw, 1.15rem); transition: 0.3s; text-transform:uppercase; } .dsg-block-28-header-before__link:hover { color: #fff; text-decoration:underline; } .dsg-block-28-header-before__location-mobile { display: block; } .dsg-block-28-header-before__hider-mobile { display: none; } @media screen and (min-width: 600px) { .dsg-block-28-header-before__location-mobile { display: inline; } .dsg-block-28-header-before__hider-mobile { display: inline; } } @media screen and (min-width: 960px) {} @media screen and (min-width: 1280px) {} @media screen and (min-width: 1600px) {} </style>

Control4/C4-DIN-8DIM-E-V2/faeaa450-a416-48b2-8852-dbb6473ea5e4.jpg

Control4/C4-DIN-8DIM-E-V2/3a4b5ecc-6424-4b55-bea4-2e8d03146661.pdf

Control4/C4-DIN-8DIM-E-V2/086de582-47b2-4057-9e07-5faf87d5a650.jpg

Control4/C4-DIN-8DIM-E-V2/f0cecde8-ab19-49ea-8caf-04c143d6b419.pdf

Control4/C4-DIN-8DIM-E-V2/7450a5ce-3173-481e-bff3-43e4cddc5570.png

Control4/C4-DIN-8DIM-E-V2/673c4138-d27a-486f-b544-5840603eafc2.pdf

Control4/C4-DIN-8DIM-E-V2/41e2190d-e24e-4804-b343-989f55be4155.pdf

<p>The Control4&reg; 8-Channel Adaptive Phase Dimmer controls up to eight loads from one module in the Control4 system. It is an adaptive phase dimmer, so each channel supports a variety of load types including incandescent, halogen, electronic low-voltage (solid-state) transformer, magnetic (iron core) low-voltage transformer, fluorescent, compact fluorescent, LED, and motor. The 8-Channel Adaptive Phase Dimmer automatically detects the load type and sets the appropriate dimming mode.</p>Controls up to eight loads and supports a variety of load types<br />Each channel can be set to different dimming modes including Switch mode, Forward Phase mode, Reverse Phase mode, and Autodetect mode<br />Channel buttons allow for toggling on/off or ramping up/down a load<br />Channel Status LEDs indicate whether a load is on, off, or in short-circuit fault<br />Module Override button allows toggling between the module override scene and all channels off or setting the module override scene to current channel levels<br />Module Status LED indicates if module power is on with normal operation, off, or in thermal overload<br />Link/Activity LED indicates system link status, communication activity, or firmware update status<br />Reset button can be used for factory default or network configuration settings<br />Auxiliary override connection allows a standard line-voltage toggle switch to control the attached lights before the control system is installed or in case the controller malfunctions<br />Module can be installed in either a Control4 5- or 2-slot panel or a third-party DIN rail panel<br />California Title 20 compliant<br />

Centralized Lighting modules move lighting load control from wall boxes to a central control panel. This assembly eliminates wall clutter and gives you more freedom for interior design, while still allowing lighting control from keypads, touch screens, mobile devices and remotes.

Control4® DIN-Rail 8-Channel Adaptive Phase Dimmer V2-C4-DIN-8DIM-E-V2

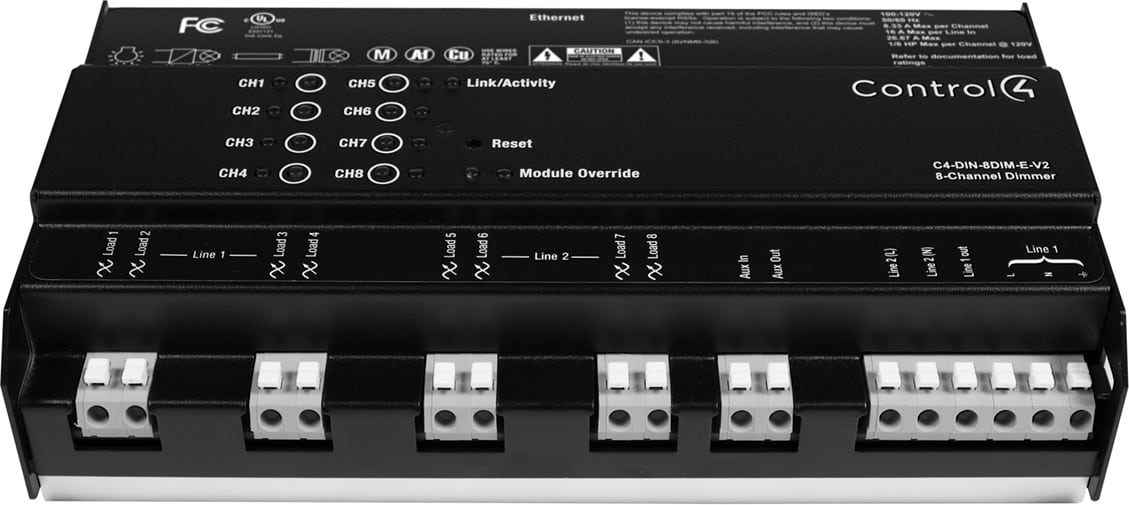

Control4® DIN-Rail 8-Channel Adaptive Phase Dimmer V2

Provides centralized dimming control of up to eight dimmable light loads. The module automatically detects the load type (for example, incandescent, halogen, fluorescent or LED) and sets the appropriate dimming mode.

Each module controls up to eight circuits of lighting (or other loads), removing the need for dimmers and switches on the walls in the living space

Easily accessible buttons allow manual control for testing and emergencies

Can be installed in either a Control4 5-Slot or 2-Slot panel or in a third-party DIN rail panel

General Specs
Width (in.)	4.5
Depth (in.)	2.2
Height (in.)	8.6
Product Weight (lbs.)	2.7
Manufacturer Warranty	Limited Warranty. See store for full details.
Dimensions
Shipping Weight:	3.2

Control4® DIN-Rail 8-Channel Adaptive Phase Dimmer V2
