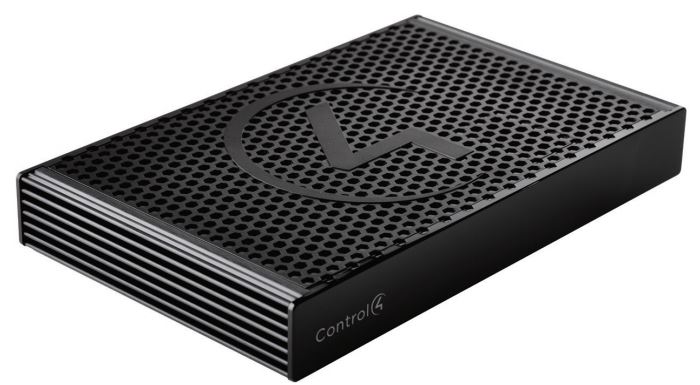

Control4® EA-1 Controller
At a Glance
The controller is the brain of your smart home. It manages your home automation system, allowing the electronic devices in your home to work together—from lighting and security, to music and video, and pretty much anything else in between. No matter the size of your home, whether you’re automating a single room or a sprawling mansion, Control4 controllers are capable of powering your entire home automation system.
Proposition 65 Warning for California Residents
General Specs
| Product Weight (lbs.) | 1.2 |
|---|---|
| Depth (in.) | 5 |
| Width (in.) | 7.5 |
| Height (in.) | 1.13 |
| Color | Black |
General
| Control4 App | Included—Supports up to 50 devices |
|---|---|
| Music Services | Pandora®, Napster®, Spotify, TuneIn, TIDAL, Deezer |
| ShairBridge | Up to 20 instances of the driver in the project; 3 concurrent streams |
| Video Out | 1 video out—HDMI |
| Video | HDMI 1.4 output; HD 1080p, 50-60 Hz |
| Audio Out | 3 audio out—1 HDMI, 1 stereo analog (3.5 mm), 1 digital coax |
| Audio In | 2 audio in—1 stereo analog (3.5 mm), 1 digital coax |
| Audio Playback Formats | AAC, AIFF, ALAC, FLAC, M4A, MP2, MP3, MP4/M4A, Ogg Vorbis, PCM, WAV, WMA |
| High-Resolution Audio Playback | Up to 192 kHz / 24 bit |
| Ethernet | Dedicated audio signal processor |
| Audio system controls (analog only) | 10-band graphic equalizer, input gain, output gain, loudness, tone controls, balance |
| Signal-to-noise ratio | <-110 dBFS |
| Total harmonic distortion | 0.0015 (-96.5 dB) |
| Ethernet | 10/100/1000BaseT compatible (required for controller setup) PoE+ supported |
| Power over Ethernet | 802.3at-2009 (PoE+) / 25.5W |
| Built-in Ethernet switch | 1 Ethernet/PoE in + 1 Ethernet switch port |
| WiFi | Internal Dual-Band Wireless-N (EA-3 V1) (2.4 GHz, 5 GHz, 802.11n/g/b); Optional Dual-Band WiFi USB Adapter (EA-3 V2) (2.4 GHz, 5 Ghz, 802.11ac/b/g/n/a) |
| WiFi Security | WPA/WPA2 |
| WiFi Antenna | External reverse SMA connector (EA-3 V1 only); optional WiFi adapter on the EA-3 V2 |
| ZigBee Pro | 802.15.4 |
| ZigBee Antenna | External reverse SMA connector |
| USB Port | 1 USB 2.0 port—500mA |
| IR Out | 6 IR out—5V 27mA max output, 1 IR blaster—front |
| IR Capture | 1 IR receiver—front; 20-60 kHz |
| Serial Out | 3 serial out (shared with IR out 1-3) |
| Contact | 1 contact sensor—2V-30VDC input, 12VDC 125mA maximum output |
| Relay | 1 relay—AC: 36V, 2A maximum voltage across relay; DC: 24V, 2A maximum voltage across relay |
| Power Requirements | 100-240 VAC, 60/50 Hz or PoE+ |
| Power Consumption | Max: 25W, 85 BTUs/hour; Idle: 13W, 44 BTUs/hour |
| Operating Temperature | 32° ~ 104°F (0° ~ 40°C) |
| Storage Temperature | 4° ~ 158°F (-20° ~ 70°C) |
| Fan dB Level | Max: 35 dB |
| Dimensions (H × W × D) | 1.25" (31 mm) × 8.75" (221 mm) × 5.875" (149 mm) |
| Weight | 1.60 lbs (0.74 kg) |
| Shipping Weight | 2.75 lbs (1.26 kg) |
Special order
Control4® EA-1 Controller
Model #: C4-EA1
Call for Best Price
IN-STORE PICK UP ONLY
NO ONLINE ORDERING
At a Glance
Get to know this product.
Certified HDMI with audio and video capability delivers reliable connectivity to today’s televisions and receivers.
Control4 App license enables in-home control from iOS and Android mobile devices, as well as PCs. A 4Sight subscription enables remote access and control from virtually anywhere.
Instantaneous, intuitive control from a touch screen, remote, or TV on-screen navigator.
Next-generation core and ZigBee processors deliver a new level of speed and performance.
