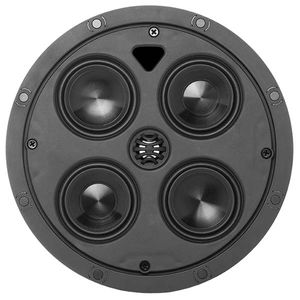

Origin Acoustics® ThinFit™ TF 30 Series 3.5" In-Ceiling Speaker

Model #: TF34

At a Glance

With a mounting depth of only 2.75 inches, speakers in the ThinFit collection meet the unique challenges presented by restrictive above-ceiling areas. Our team is proud to present a loudspeaker with superior sonic performance that installs in limited depth.

WarningProposition 65 Warning for California Residents
Origin Acoustics® ThinFit™ TF 30 Series 3.5" In-Ceiling Speaker

Construction

Tweeter CompositionAluminum
Woofer Composition IMG (Injection Molding Graphite)

Dimensions

Diameter9.61"
Mount Depth2.68

Specifications

Sensitivity89 dB +/- 3dB
Speaker TypeIn-Ceiling Speaker
Frequency Response55 Hz - 20 kHz

General Specs

Color Finish NameBlack
RMS Power Handling (Watts)90
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)90
Speaker TypeIn-Ceiling Speakers
Woofer Size3.5" x 4
SPECIAL ORDER ONLY

Special Order

Origin Acoustics® ThinFit™ TF 30 Series 3.5" In-Ceiling Speaker

Model #: TF34
96531
Model #: TF34
Origin Acoustics
$99,999.00

Available in Store Only

IN-STORE PICK UP ONLY

NO ONLINE ORDERING

At a Glance

With a mounting depth of only 2.75 inches, speakers in the ThinFit collection meet the unique challenges presented by restrictive above-ceiling areas. Our team is proud to present a loudspeaker with superior sonic performance that installs in limited depth.

Get to know this product.

With a mounting depth of only 2.75 inches, speakers in the ThinFit collection meet the unique challenges presented by restrictive above-ceiling areas. Our team is proud to present a loudspeaker with superior sonic performance that installs in limited depth. ThinFit speakers feature a powder-coated steel back can. This built-in enclosure provides complete protection of the loudspeaker’s components, it also reduces sound transfer between rooms by up to 9dB.

DPSD™ Tweeter

    Featured in the C68 and C66, this patented tweeter has the greatest output and is able to crossover much lower to either the woofer or the midrange improving both dispersion and the frequency response.

Woofer Cone Materials

    Designed from the ground up, we only use the finest materials for our woofers to ensure optimal performance in response with speed and precision.

Multi-Driver Arrangement

    TF30s contain four drivers, with two woofers dedicated to mid-range frequencies. This configuration is a perfect means of producing impressive sound quality from a very thin enclosure.

Powder Coated Steel Back-Can

    The sealed enclosures on the ThinFit collection protect the loudspeaker's components and reduce sound transfer between rooms. With a mounting depth of only 2.75" (70mm), ThinFit speakers can fit in the tightest spaces.

Specifications

General Specs

Color Finish NameBlack
RMS Power Handling (Watts)90
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)90
Speaker TypeIn-Ceiling Speakers
Woofer Size3.5" x 4

Construction

Tweeter Composition:Aluminum
Woofer Composition: IMG (Injection Molding Graphite)

Dimensions

Diameter:9.61"
Mount Depth:2.68

Specifications

Sensitivity:89 dB +/- 3dB
Speaker Type:In-Ceiling Speaker
Frequency Response:55 Hz - 20 kHz
