Origin Acoustics® ThinFit™ TF 30 Series 3.5" In-Ceiling Speaker

Model #: TF36
96528
Origin Acoustics
At a Glance

With a mounting depth of only 2.75 inches, speakers in the ThinFit collection meet the unique challenges presented by restrictive above-ceiling areas. Our team is proud to present a loudspeaker with superior sonic performance that installs in limited depth.

Call for Best Price
$99,999.00Save $NaN

Get to know this product.

With a mounting depth of only 2.75 inches, speakers in the ThinFit collection meet the unique challenges presented by restrictive above-ceiling areas. Our team is proud to present a loudspeaker with superior sonic performance that installs in limited depth. ThinFit speakers feature a powder-coated steel back can. This built-in enclosure provides complete protection of the loudspeaker’s components, it also reduces sound transfer between rooms by up to 9dB.

DPSD™ Tweeter

  • Featured in the C68 and C66, this patented tweeter has the greatest output and is able to crossover much lower to either the woofer or the midrange improving both dispersion and the frequency response.

Woofer Cone Materials

  • Designed from the ground up, we only use the finest materials for our woofers to ensure optimal performance in response with speed and precision.

Multi-Driver Arrangement

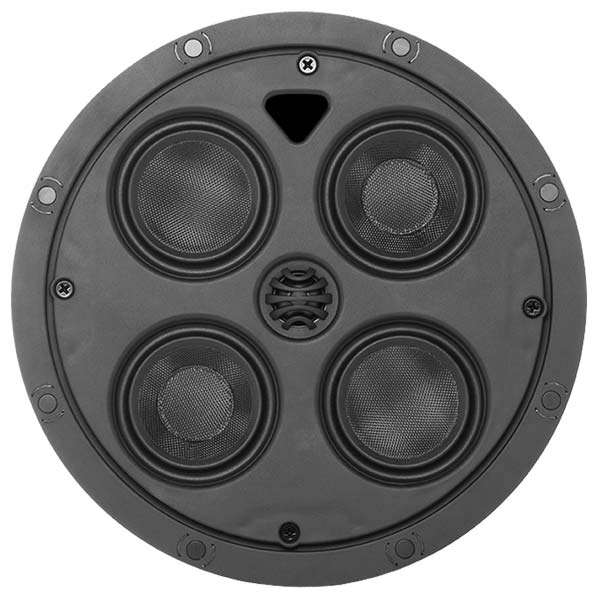

  • TF30s contain four drivers, with two woofers dedicated to mid-range frequencies. This configuration is a perfect means of producing impressive sound quality from a very thin enclosure.

Powder Coated Steel Back-Can

  • The sealed enclosures on the ThinFit collection protect the loudspeaker's components and reduce sound transfer between rooms. With a mounting depth of only 2.75" (70mm), ThinFit speakers can fit in the tightest spaces.
Specifications

Construction

Tweeter Composition:Silk
Woofer Composition:Glass Fiber Cone

Dimensions

Diameter:9.61"
Mount Depth:2.68

Specifications

Sensitivity:89 dB ± 3dB
Speaker Type:In-Ceiling Speaker
Frequency Response:50Hz - 20kHz

Misc. Specs

Color Finish NameBlack
RMS Power Handling (Watts)110
ColorBlack
Impedance8 ohms
Maximum Power Handling (Watts)110
Speaker TypeIn-Ceiling Speakers
Woofer Size3.5" x 4
