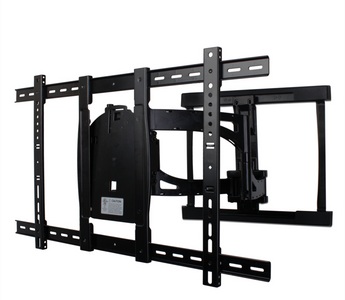

SnapAV Strong™ Razor Series Articulating Mount-Black

At a Glance

SnapAV Strong™ Razor Series Articulating Mount-Black with 4 easy adjustments and smooth motion

Proposition 65 Warning for California Residents

Installing an articulating mount shouldn't require three arms. That's why this product features a smart 3-piece construction - wall bracket, arm assembly, and TV plate - so it can be installed by just one person.with two arms. The cast aluminum arms are lighter and easier to handle, while still providing plenty of strength. Sure it costs more to produce it this way, but we think your job (and your back) are worth it.

Secure Wall Bracket

Hang Arm Assembly

Attach TV Plates

Height -

Tweak the height up to 1-in. post-install, thanks to this handy vertical adjustment screw.

Leveling -

Rest the TV plate on the arm assembly and roll it 4 degrees left and right for fast and easy leveling. Once it's perfect, just tighten down the bottom screws and you're good to go.

Tilt -

The arm assembly base plate has a tilt angle of -12 degrees to +5 degrees, making it easy to get the TV at the perfect viewing angle. No tool required unless you want to fine tune it for the perfect feel.

Centering

- Sometimes studs aren’t exactly where you need them, but this mount takes care of that. Before securing the arm assembly to the wall mount, slide it 4.25-in. left and right to get it perfectly centered.

Sometimes heavier TVs can creep or tilt away from the wall over time. To prevent this, our engineers designed an adjustable home position latch to snap the TV into place – and keep it there.

When you’re struggling to keep the wall bracket level while reaching in your pocket for bolts and fumbling for a drill, it can feel more like a three-ring circus than an install. So we decided to cut the chaos with this product’s smart design. A center hole location allows you to drill in a sheetrock screw for temporary hanging, then mark and measure all other hole locations ahead of time, secure the bolts in the wall, and mount the bracket into place.

Today’s ultra-thin TVs have met their match in the SM-RAZOR-ART2-XL . Fully collapsed it sits just 1.6-in. off the wall, so it doesn’t add any unnecessary bulk. And when you pull it away from the wall it looks just as good, too – thanks to all-black hardware and a sleek arm design.

Swiveling up to 180 degrees and extending out from the wall a whopping 25.5-in., this mount moves fluidly with minimal force required.

Using the included extension bracket, get support for VESA patterns all the way up to 800x600 – perfect for those extra big displays. And even without the bracket this mount provides plenty of support, fitting displays with VESA patterns of 800x400.
