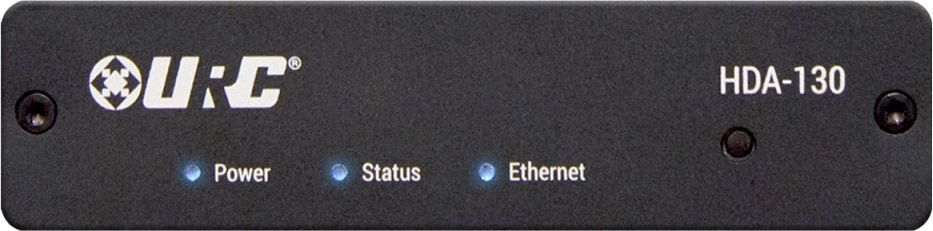

URC® Total Control® Single Zone Amplifier

Product Overview

Small but powerful, the HDA-130 Single Zone Amplifier can be placed nearly anywhere and delivers 30 Watts per channel (stereo) of power to local zone speakers. Also features a single L+R preamplifier output for the addition of a subwoofer to the zone it’s placed in. But that’s not all — it can also stream a local source through URC’s HDA High-Definition audio distribution system to multiple zones and supports ducking to automatically lower the volume of the music playing for paging applications & microphone use. Easily select and control which sources to listen to in which zones of your facility via URC’s Total Control smart automation and control system.

Single Zone Amplifier

30 Watts / channel @ 8 Ohms (stable down to 4 Ohms)

96 kHz / 24-bit, High Resolution Audio streaming

High pass & Low pass filters per zone

Each zone supports a full 5-band parametric EQ

Ducking input capability (automatically lowers the volume of the music playing for paging applications & microphone use)

Paging event support

Store up to 10 .WAV files in each chassis (for doorbell ring chime and / or trigger alert chimes)

Expandable up to 32 sources x 32 zones (with multiple HDA amplifiers)

Gigabit AVB Network Switch Required

System processor and professional programming by an authorized URC Total Control dealer required

What's in the Box:

HDA-130

Speaker Terminal Block

3.5mm to RCA Cable

48-Volt DC adapter

Left / Right L Brackets

Rubber Feet

*Note: HDA-SW5 AVB Network Switch is needed when more than 1 HDA product is installed
